PRODUCT

Features

Round handle structure

The round handle can be gripped from any angle, ensuring excellent operability. It starts and stops easily, with a smooth drive mechanism.
Direct drive mechanism The force applied is transmitted smoothly, enabling operation with minimal effort.
The round handle can be easily operated, even when using the grip and it is retractable, so it does not obstruct pathways.

Center lock mechanism

Pulling the center lock in the handle’s central part allows the shelf to be locked easily. The lock status can be quickly identified by color.

Video/Movement

Drawing data and specifications

Drawing Data

TKZ

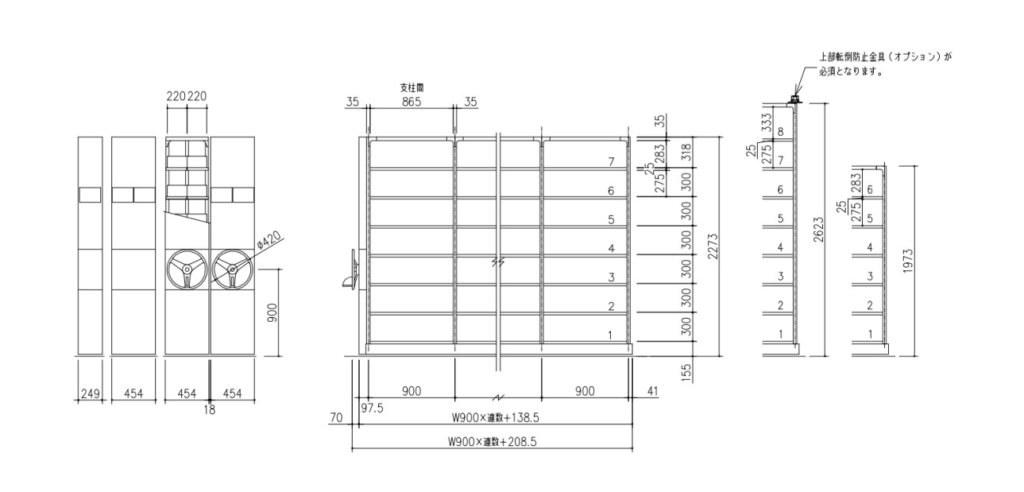

■B5 size or smaller, H300mm pitch

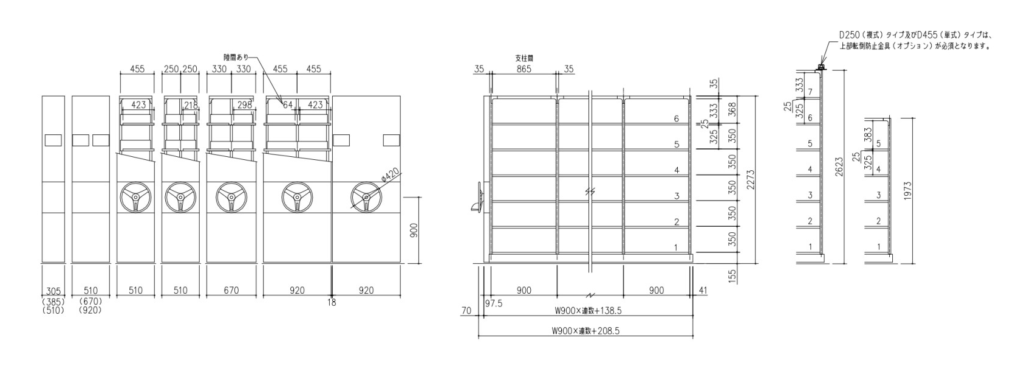

■A4 size or smaller, H350mm pitch

KZ

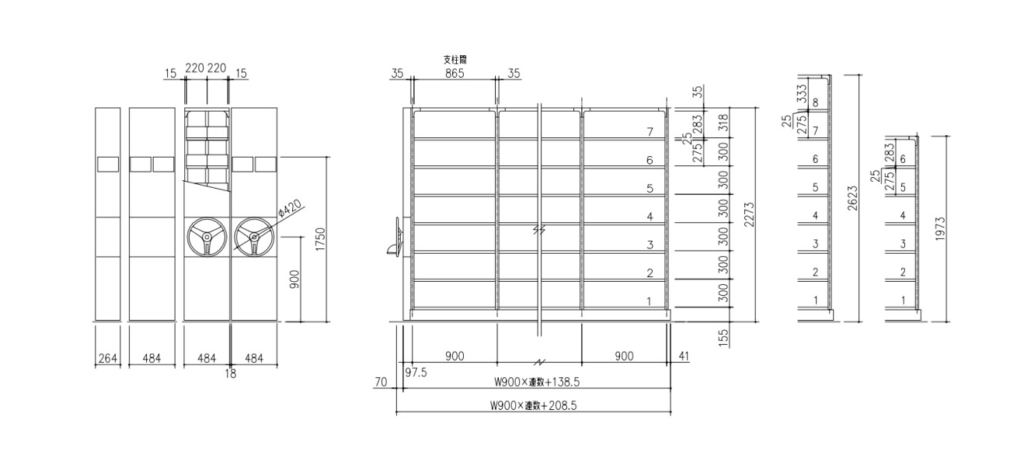

■B5 size or smaller, H300mm pitch

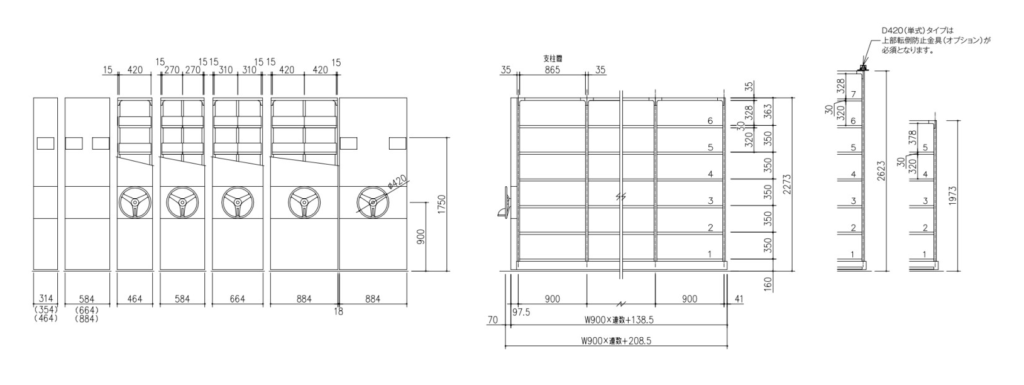

■A4 size or smaller, H350mm pitch

Specifications

Job Reference
